Spatial and spatiotemporal diagnostics

Why separate field components?

A spatiotemporal model can contain at least three distinct contributions:

• fixed effects, including measured covariates and temporal effects;
• a persistent spatial field, shared through time; and
• a spatiotemporal field, representing time-specific spatial departures.

Their sum describes the fitted linear predictor, but their influence interpretations differ. A persistent spatial-field influence can reveal a change in where observations were collected. A spatiotemporal-field influence can also contain a genuine fitted annual spatial departure. influ2 therefore keeps the fields separate instead of silently combining them.

The examples below follow the packages’ own worked examples: the sdmTMB introduction and the tinyVAST vector-autoregressive vignette. They are deliberately small enough to rebuild as package documentation.

sdmTMB

Data and mesh

The sdmTMB example uses its Pacific cod survey data from Queen Charlotte Sound (Anderson et al. 2025). The response is whether Pacific cod were encountered in a tow. Depth is included as a quadratic effect, and year is the diagnostic focus.

library(influ2)
data("pcod", package = "sdmTMB")
data("qcs_grid", package = "sdmTMB")

ggplot(pcod, aes(X, Y, colour = density)) +
  geom_point(size = 1.2) +
  coord_fixed() +
  scale_colour_viridis_c(trans = "sqrt") +
  labs(x = "Easting (km)", y = "Northing (km)", colour = "Density")

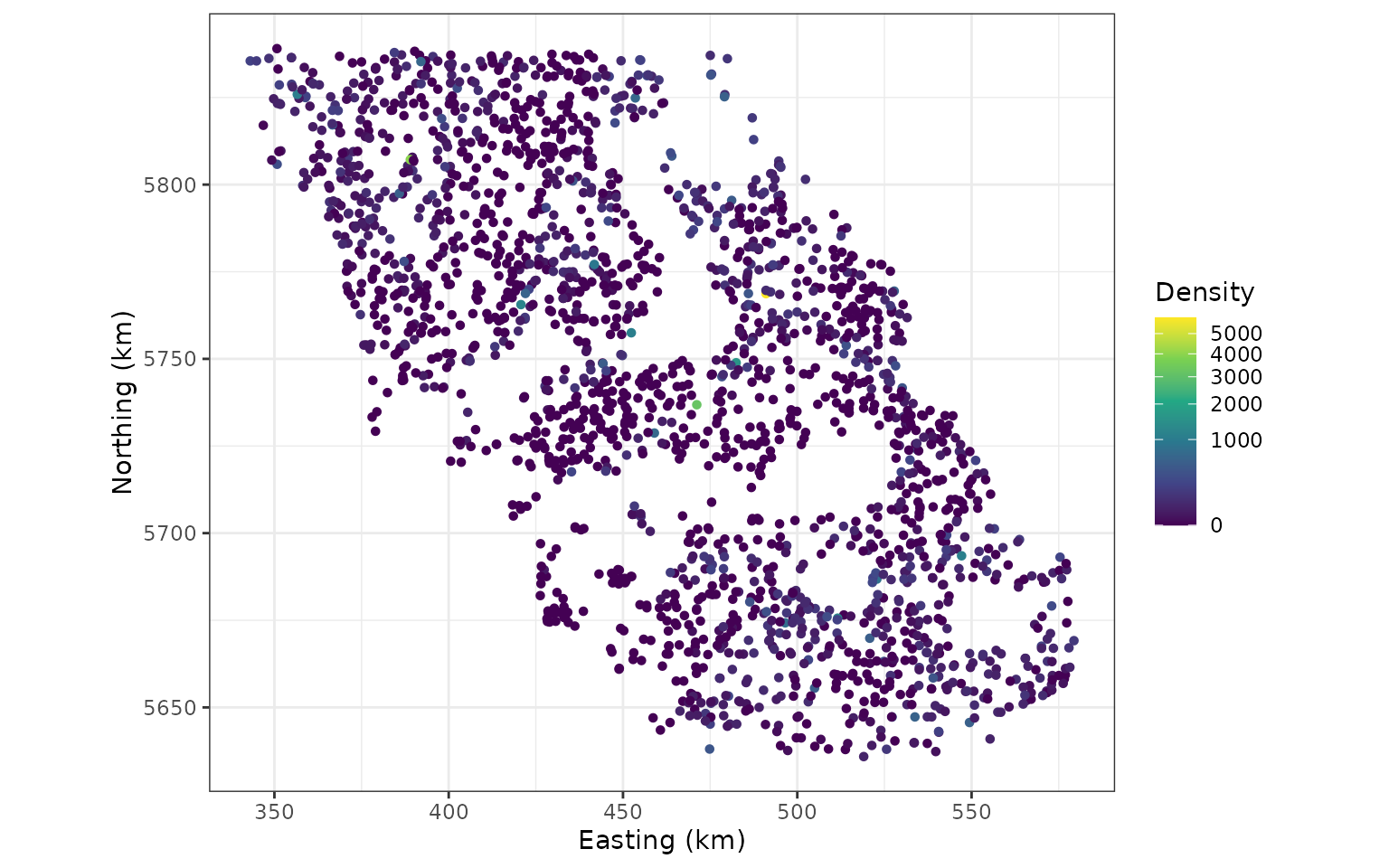

Observed Pacific cod survey tows, coloured by catch density.

The triangulated mesh approximates a continuous Matérn spatial field. The coarse cutoff is appropriate for a documentation example, rather than a recommendation for production analysis.

pcod_mesh <- sdmTMB::make_mesh(pcod, c("X", "Y"), cutoff = 10)
plot(pcod_mesh)

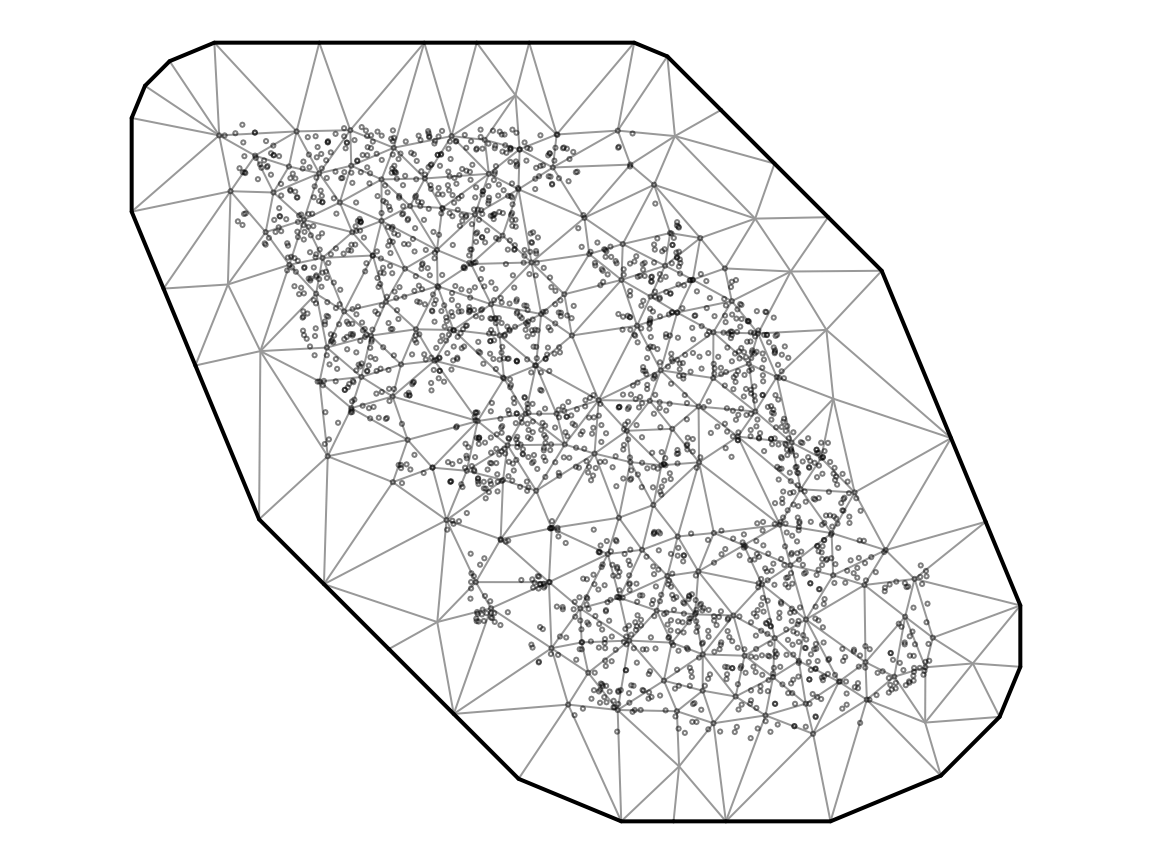

Triangulated mesh used for the Pacific cod spatiotemporal model.

Fit and diagnose

This is the package website’s binomial spatiotemporal model, with a persistent spatial field and independent year-specific spatiotemporal fields.

pcod_model <- sdmTMB::sdmTMB(
  present ~ depth_scaled + depth_scaled2,
  data = pcod,
  mesh = pcod_mesh,
  family = binomial(link = "logit"),
  spatial = "on",
  time = "year",
  spatiotemporal = "IID",
  silent = TRUE
)

pcod_diagnostic <- influ(
  pcod_model,
  focus = "year",
  ndraws = 100,
  seed = 11
)
summary(pcod_diagnostic)
#> Influence diagnostic summary
#>   Backend: sdmTMB
#>   Family:  single binomial (logit)
#>   Focus:   year
#>
#>                  term                 component maximum_absolute_link_influence
#>          depth_scaled               conditional                       0.5119533
#>  spatiotemporal_field conditional:latent_fields                       0.4880374
#>         depth_scaled2               conditional                       0.3191610
#>         spatial_field conditional:latent_fields                       0.2806088
#>  level_at_maximum
#>              2003
#>              2011
#>              2004
#>              2003

The common components plot shows the influence associated with changing depth coverage, persistent spatial structure, and year-specific spatial departures.

plot(
  pcod_diagnostic,
  type = "components",
  term = c(
    "depth_scaled", "depth_scaled2", "spatial_field",
    "spatiotemporal_field"
  )
)

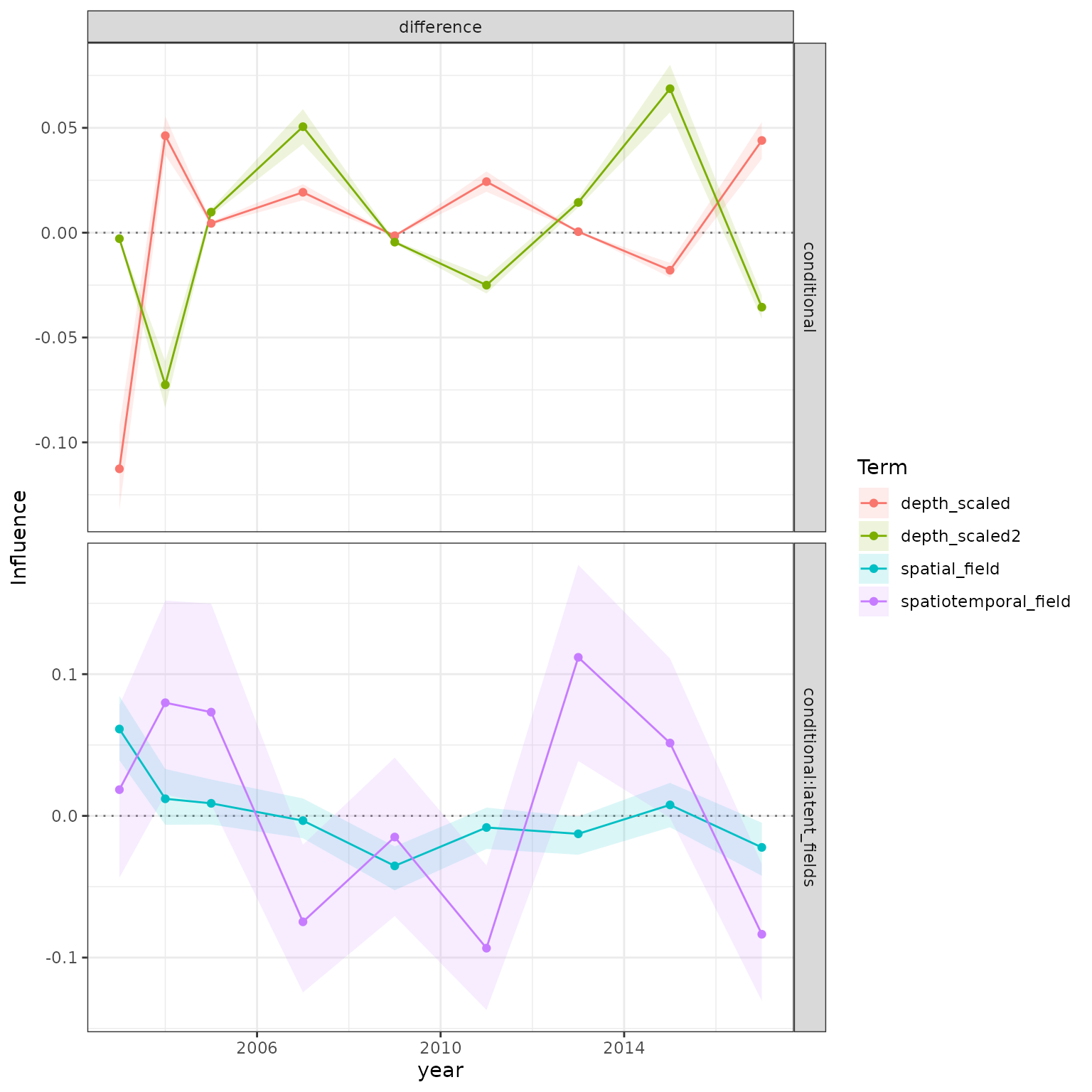

Fixed, spatial, and spatiotemporal influence components from the sdmTMB Pacific cod model.

Fitted field surfaces

sdmTMB::predict() exposes the persistent field as omega_s, the spatiotemporal field as epsilon_st, and their combined contribution as est_rf. Mapping the same components that enter the influence diagnostic is an important interpretation check.

mapping_grid <- do.call(
  rbind,
  lapply(c(2003L, 2017L), function(selected_year) {
    transform(qcs_grid, year = selected_year)
  })
)
field_predictions <- predict(pcod_model, newdata = mapping_grid)
field_surfaces <- tidyr::pivot_longer(
  field_predictions,
  cols = c(omega_s, epsilon_st, est_rf),
  names_to = "component",
  values_to = "link_contribution"
)
field_surfaces$component <- factor(
  field_surfaces$component,
  levels = c("omega_s", "epsilon_st", "est_rf"),
  labels = c("Persistent spatial", "Spatiotemporal", "Combined fields")
)

ggplot(field_surfaces, aes(X, Y, fill = link_contribution)) +
  geom_raster() +
  coord_fixed() +
  facet_grid(component ~ year) +
  scale_fill_gradient2(
    low = "#2166AC", mid = "white", high = "#B2182B", midpoint = 0
  ) +
  labs(
    x = "Easting (km)", y = "Northing (km)",
    fill = "Link-scale\ncontribution"
  )

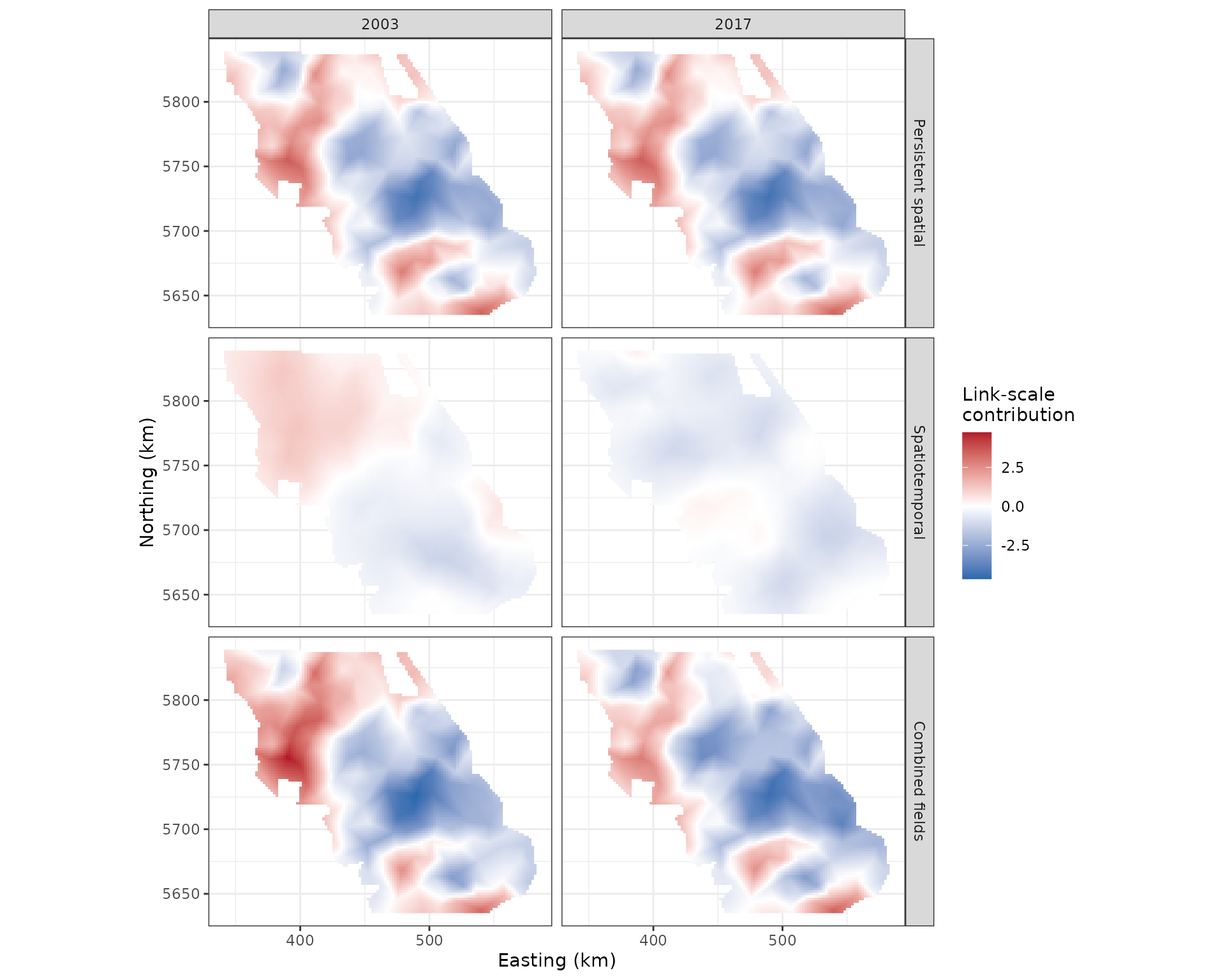

Persistent spatial field, year-specific spatiotemporal field, and their sum for two Pacific cod survey years.

Refitted year-effect steps

A separate step plot can show how the fitted year effects change when spatial and spatiotemporal structure is added. Its models must all contain an explicit fixed year term. The Pacific cod model above does not contain one, so the following code first fits a version with factor(year) while retaining its depth effects and field structure. This additional sequence is shown without running the refits during the vignette build.

pcod_year_model <- update(
  pcod_model,
  formula. = present ~ factor(year) + depth_scaled + depth_scaled2
)

pcod_steps <- influ_steps(
  pcod_year_model,
  year = "year",
  component = "conditional",
  refit = TRUE,
  steps = list(
    "Year + depth" = list(
      formula = ~factor(year) + depth_scaled + depth_scaled2,
      spatial = "off",
      spatiotemporal = "off"
    ),
    "Add spatial field" = list(
      formula = ~factor(year) + depth_scaled + depth_scaled2,
      spatial = "on",
      spatiotemporal = "off"
    ),
    "Add spatiotemporal field" = list(
      formula = ~factor(year) + depth_scaled + depth_scaled2,
      spatial = "on",
      spatiotemporal = "IID"
    )
  ),
  ndraws = 100,
  seed = 13
)
plot_step(pcod_steps)

Every step retains the same observations, depth covariates, and year term. The fitted year coefficients can change because the likelihood is re-optimised with a different field structure. These are year-effect contrasts from refitted models. They are not area-weighted abundance indices, and the qcs_grid used for the maps is not integrated to create this plot.

Joint delta step plots

A delta model can use different formulas and different annual predictors in its two components, as described in the sdmTMB delta-model guide. For example, the encounter component may have a linear annual trend while the positive component has a factor year effect. Set year to the common plotting variable and year_term to the annual predictor in each formula. Each predictor must be constant within a plotted year. The linear encounter trend remains linear on its link scale: this interface does not turn it into free annual coefficients.

This small simulated example illustrates the paired-formula interface. It does not fit spatial fields; explicit field stages can be specified as above.

set.seed(618)
n <- 360
delta_data <- data.frame(
  year = factor(rep(2001:2004, each = n / 4)),
  x = rnorm(n), X = runif(n), Y = runif(n), log_effort = runif(n, 0.2, 1.3)
)
delta_data$year_scaled <- (as.integer(delta_data$year) - 2.5) / 2
delta_data$response <- with(delta_data,
  rbinom(n, 1, plogis(0.6 - 0.5 * year_scaled + 0.4 * x)) *
    rlnorm(n, 0.5 + 0.2 * as.integer(year) + 0.5 * x + log_effort, 0.5)
)
delta_mesh <- sdmTMB::make_mesh(delta_data, c("X", "Y"), n_knots = 10)
delta_model <- sdmTMB::sdmTMB(
  list(response ~ year_scaled + x, response ~ year + x),
  data = delta_data, mesh = delta_mesh,
  family = sdmTMB::delta_lognormal(), offset = "log_effort",
  spatial = "off", spatiotemporal = "off"
)
delta_steps <- influ_steps(
  delta_model, year = "year",
  year_term = c(occurrence = "year_scaled", positive = "year"),
  component = "unconditional_mean", refit = TRUE,
  steps = list(
    "Year terms" = list(formula = list(~year_scaled, ~year),
                        spatial = "off", spatiotemporal = "off"),
    "Add covariate" = list(formula = delta_model$formula)
  ),
  ndraws = 1000, seed = 13
)

plot_step(delta_steps)

Combined annual-effect contrasts from a simulated delta-lognormal model with different year terms in its two components. The first stage fits only annual terms; the second reuses the full fit with the additional covariate. Effort offsets are preserved. Shading shows pointwise 95% intervals from the joint fixed-effect covariance, not uncertainty in the difference between models. These are not area-integrated indices.

Use component = "positive" for positive-component annual ratios, or "occurrence" for encounter-probability differences relative to the common fixed-effect reference. "unconditional_mean" changes both annual terms together, combining their joint covariance. Other covariates remain at each model’s weighted fixed-effect reference; latent-field modes are not added. With standard logit/log delta models, the positive log-link effort offset cancels from these ratios, but remains in every refit’s likelihood. This does not remove the separate restrictions on full offset-dependent CDI plots. Paired refits currently support standard delta-Gamma and delta-lognormal families. Save the calculated sequence: plotting it again never refits models.

tinyVAST

Simulated spatiotemporal process

The tinyVAST example adapts the package’s official univariate vector-autoregressive simulation (Thorson et al. 2025). It is smaller, uses a Poisson response, and adds changing spatial coverage so that an influence diagnostic has a sampling pattern to detect. The known process contains a persistent spatial field and an AR(1) spatiotemporal field.

set.seed(101)
n_x <- n_y <- 7
n_time <- 6
rho <- 0.45
spatial_sd <- 0.70
spatiotemporal_sd <- 0.50

spatial_correlation <- exp(
  -0.5 * abs(outer(seq_len(n_x), seq_len(n_y), FUN = "-"))
)
spatial_covariance <- kronecker(spatial_correlation, spatial_correlation)
spatial_chol <- t(chol(
  spatial_sd^2 * spatial_covariance + diag(1e-8, n_x * n_y)
))
spatiotemporal_chol <- t(chol(
  spatiotemporal_sd^2 * spatial_covariance + diag(1e-8, n_x * n_y)
))

spatiotemporal_field <- t(replicate(
  n_time,
  as.numeric(spatiotemporal_chol %*% rnorm(n_x * n_y))
))
for (time_index in 2:n_time) {
  spatiotemporal_field[time_index, ] <-
    rho * spatiotemporal_field[time_index - 1, ] +
    sqrt(1 - rho^2) * spatiotemporal_field[time_index, ]
}
spatial_field <- as.numeric(spatial_chol %*% rnorm(n_x * n_y))

linear_predictor <-
  1 +
  outer(seq(-0.15, 0.15, length.out = n_time), rep(1, n_x * n_y)) +
  outer(rep(1, n_time), spatial_field) +
  spatiotemporal_field

tiny_grid <- data.frame(
  expand.grid(
    time = seq_len(n_time),
    x = seq_len(n_x),
    ycoord = seq_len(n_y)
  ),
  true_linear_predictor = as.vector(linear_predictor)
)
tiny_grid$mean <- exp(tiny_grid$true_linear_predictor)
tiny_grid$count <- rpois(nrow(tiny_grid), tiny_grid$mean)
tiny_grid$var <- "density"
tiny_grid$dist <- "poisson"

sampling_centre <- 1 +
  (tiny_grid$time - 1) * (n_x - 1) / (n_time - 1)
sampling_probability <- 0.45 + 0.50 * exp(
  -(tiny_grid$x - sampling_centre)^2 / (2 * 2^2)
)
tiny_data <- tiny_grid[runif(nrow(tiny_grid)) < sampling_probability, ]
rownames(tiny_data) <- NULL

The observation window shifts from left to right through time. That imbalance allows the persistent field to affect temporal summaries even though the field itself does not change through time.

ggplot(tiny_data, aes(x, ycoord, colour = count, size = count + 1)) +
  geom_point(alpha = 0.8) +
  coord_equal() +
  facet_wrap(~time, nrow = 2) +
  scale_colour_viridis_c() +
  scale_size_area(max_size = 5) +
  labs(x = "X", y = "Y", colour = "Count", size = "Count + 1")

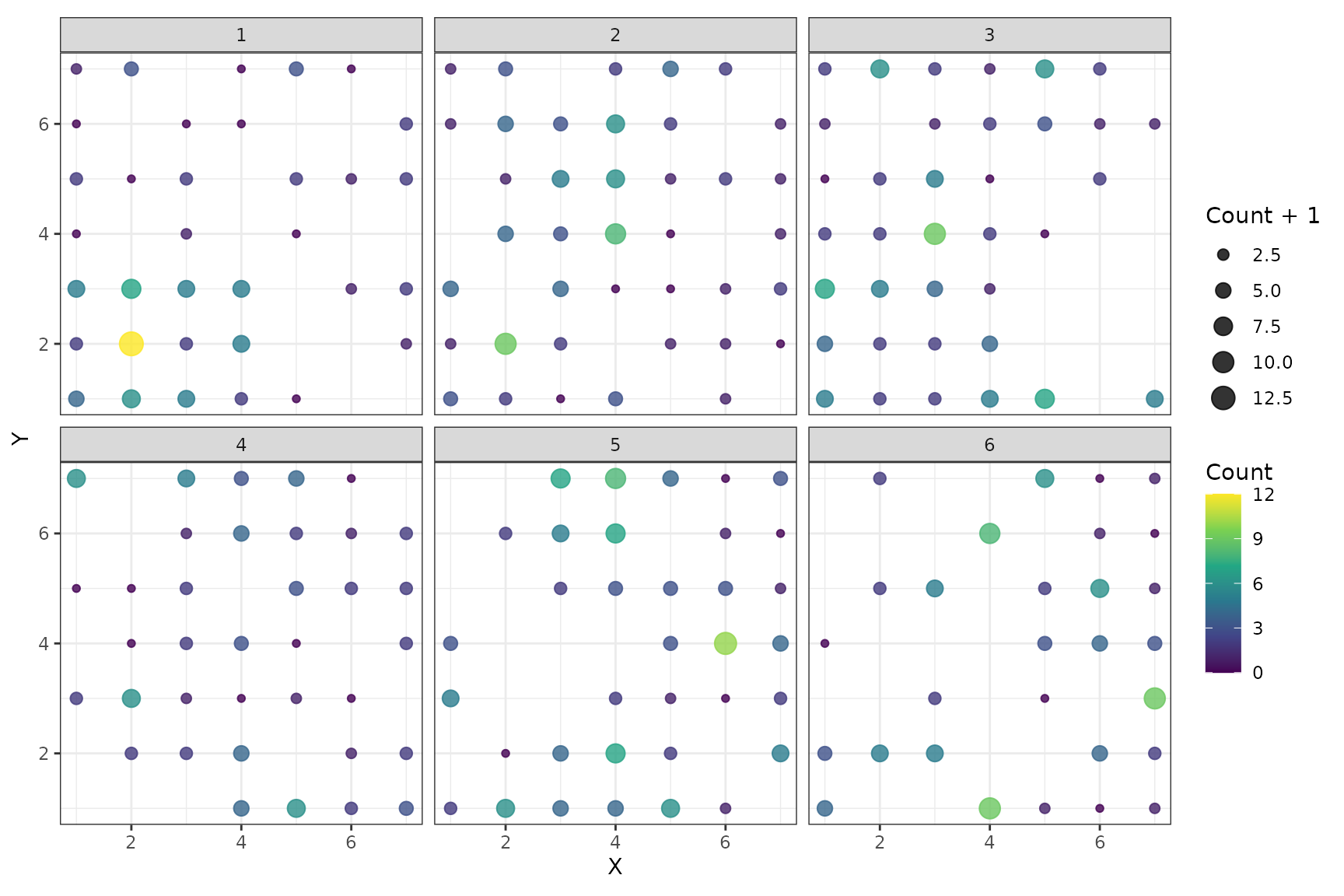

Changing spatial coverage in the simulated tinyVAST example.

Fit and diagnose

The structural-equation strings match the official tinyVAST notation: one persistent spatial variance, plus an AR(1) spatiotemporal process.

tiny_mesh <- fmesher::fm_mesh_2d(
  tiny_data[c("x", "ycoord")],
  cutoff = 1
)
space_term <- "
  density <-> density, spatial_sd
"
spacetime_term <- "
  density -> density, 1, rho
  density <-> density, 0, spatiotemporal_sd
"

tiny_model <- tinyVAST::tinyVAST(
  count ~ factor(time),
  data = tiny_data,
  family = list(poisson = poisson()),
  spatial_domain = tiny_mesh,
  space_term = space_term,
  spacetime_term = spacetime_term,
  space_columns = c("x", "ycoord")
)

tiny_diagnostic <- influ(
  tiny_model,
  focus = "time",
  ndraws = 100,
  seed = 12
)
summary(tiny_diagnostic)
#> Influence diagnostic summary
#>   Backend: tinyVAST
#>   Family:  single poisson (log)
#>   Focus:   time
#>
#>                  term                 component maximum_absolute_link_influence
#>          factor(time)               conditional                      0.24617106
#>  spatiotemporal_field conditional:latent_fields                      0.04752798
#>         spatial_field conditional:latent_fields                      0.02584581
#>  level_at_maximum
#>                 5
#>                 6
#>                 6

plot(tiny_diagnostic, type = "components")

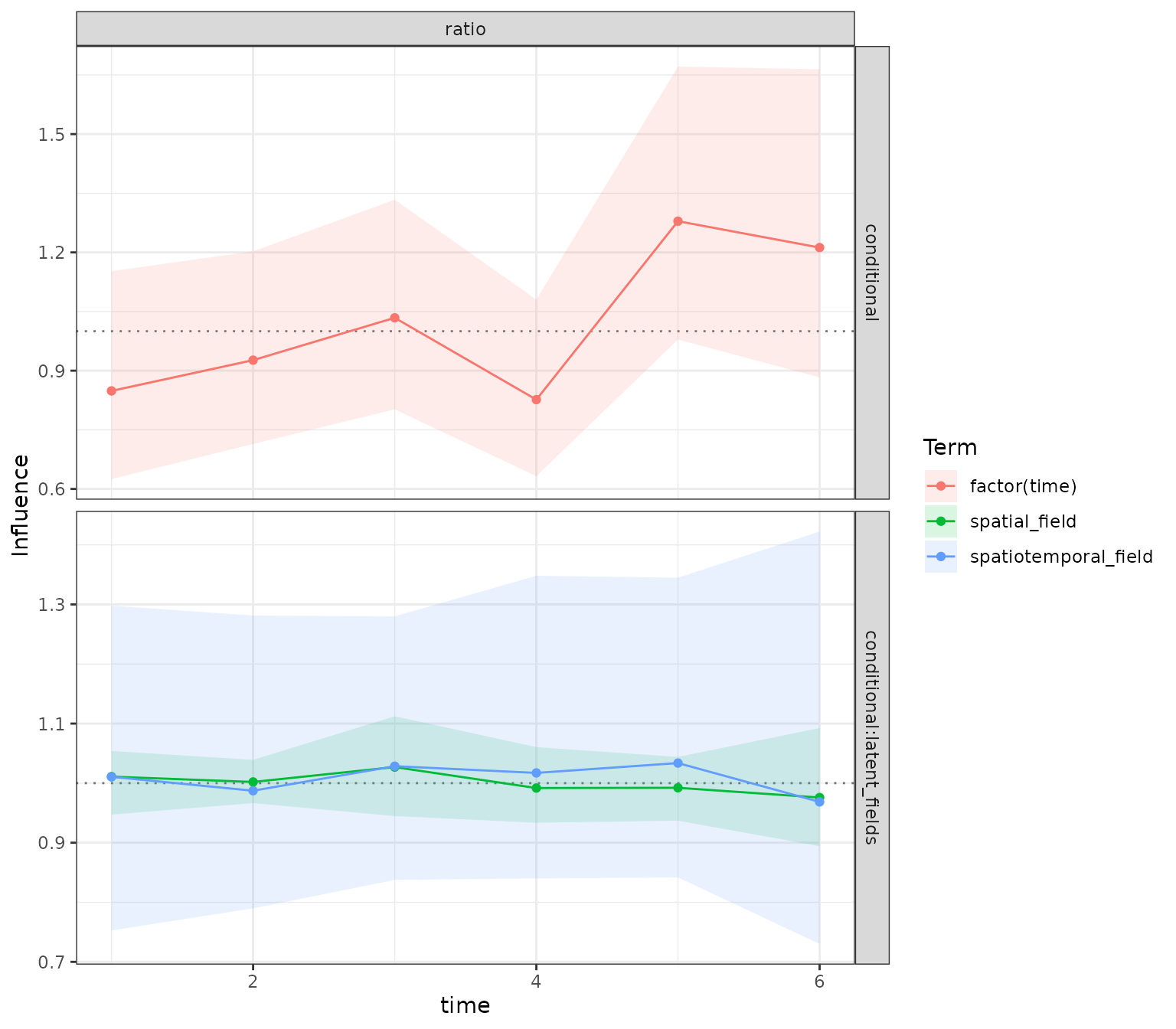

Fixed, spatial, and spatiotemporal influence components from the tinyVAST model.

Fitted field surfaces

tinyVAST::project() exposes the same latent components used by the adapter. The combined map below is calculated on the link scale before applying the inverse link.

tiny_mapping_grid <- subset(tiny_grid, time %in% c(1, 3, 6))
tiny_mapping_grid$spatial <- tinyVAST::project(
  tiny_model,
  extra_times = numeric(0),
  newdata = tiny_mapping_grid,
  what = "pomega1_g",
  future_var = FALSE,
  past_var = FALSE,
  parm_var = FALSE
)
tiny_mapping_grid$spatiotemporal <- tinyVAST::project(
  tiny_model,
  extra_times = numeric(0),
  newdata = tiny_mapping_grid,
  what = "pepsilon1_g",
  future_var = FALSE,
  past_var = FALSE,
  parm_var = FALSE
)
tiny_mapping_grid$combined <-
  tiny_mapping_grid$spatial + tiny_mapping_grid$spatiotemporal

tiny_surfaces <- tidyr::pivot_longer(
  tiny_mapping_grid,
  cols = c(spatial, spatiotemporal, combined),
  names_to = "component",
  values_to = "link_contribution"
)
tiny_surfaces$component <- factor(
  tiny_surfaces$component,
  levels = c("spatial", "spatiotemporal", "combined"),
  labels = c("Persistent spatial", "Spatiotemporal", "Combined fields")
)

ggplot(tiny_surfaces, aes(x, ycoord, fill = link_contribution)) +
  geom_raster() +
  coord_equal() +
  facet_grid(component ~ time) +
  scale_fill_gradient2(
    low = "#2166AC", mid = "white", high = "#B2182B", midpoint = 0
  ) +
  labs(x = "X", y = "Y", fill = "Link-scale\ncontribution")

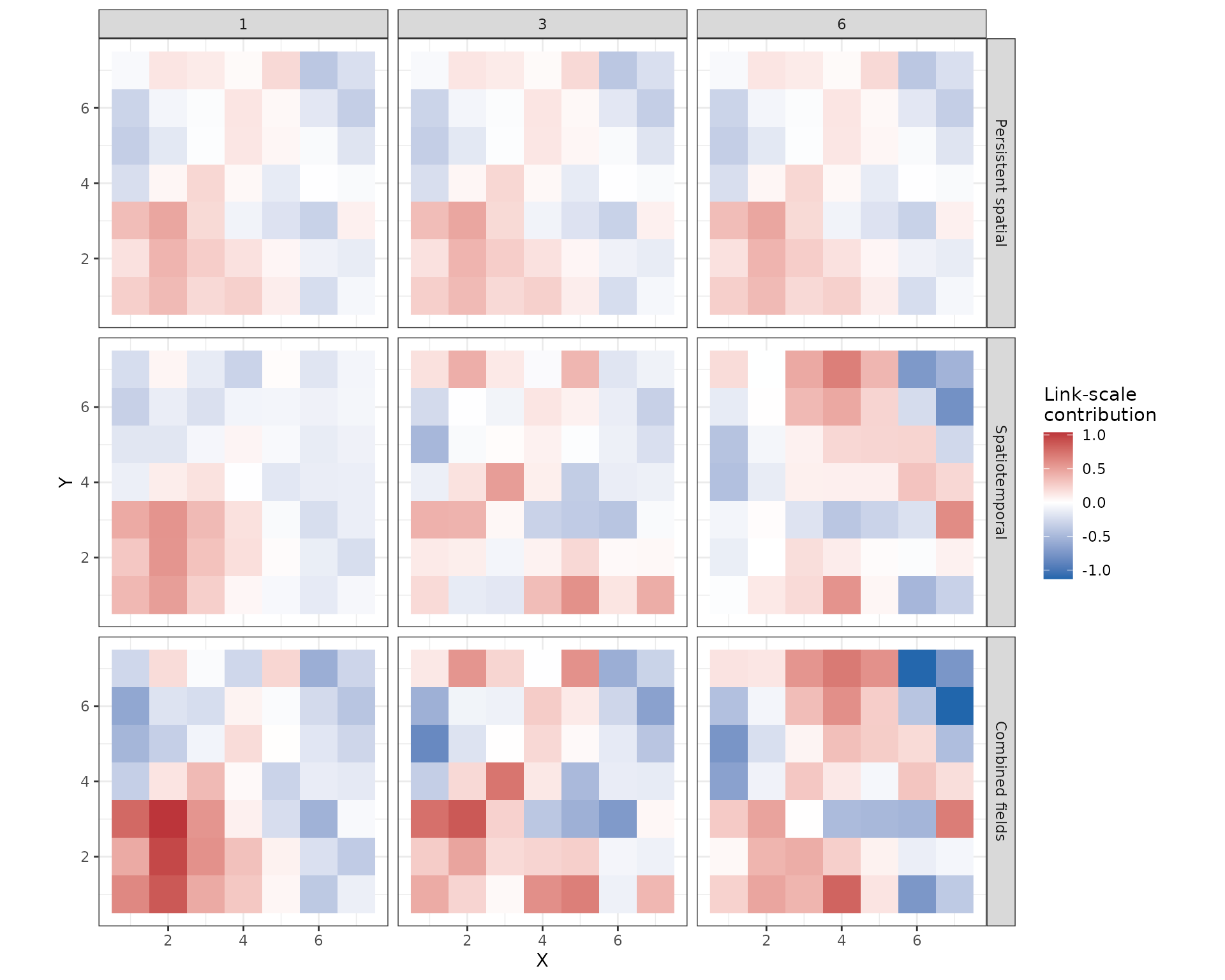

Fitted persistent spatial field, spatiotemporal field, and their sum from the tinyVAST example.

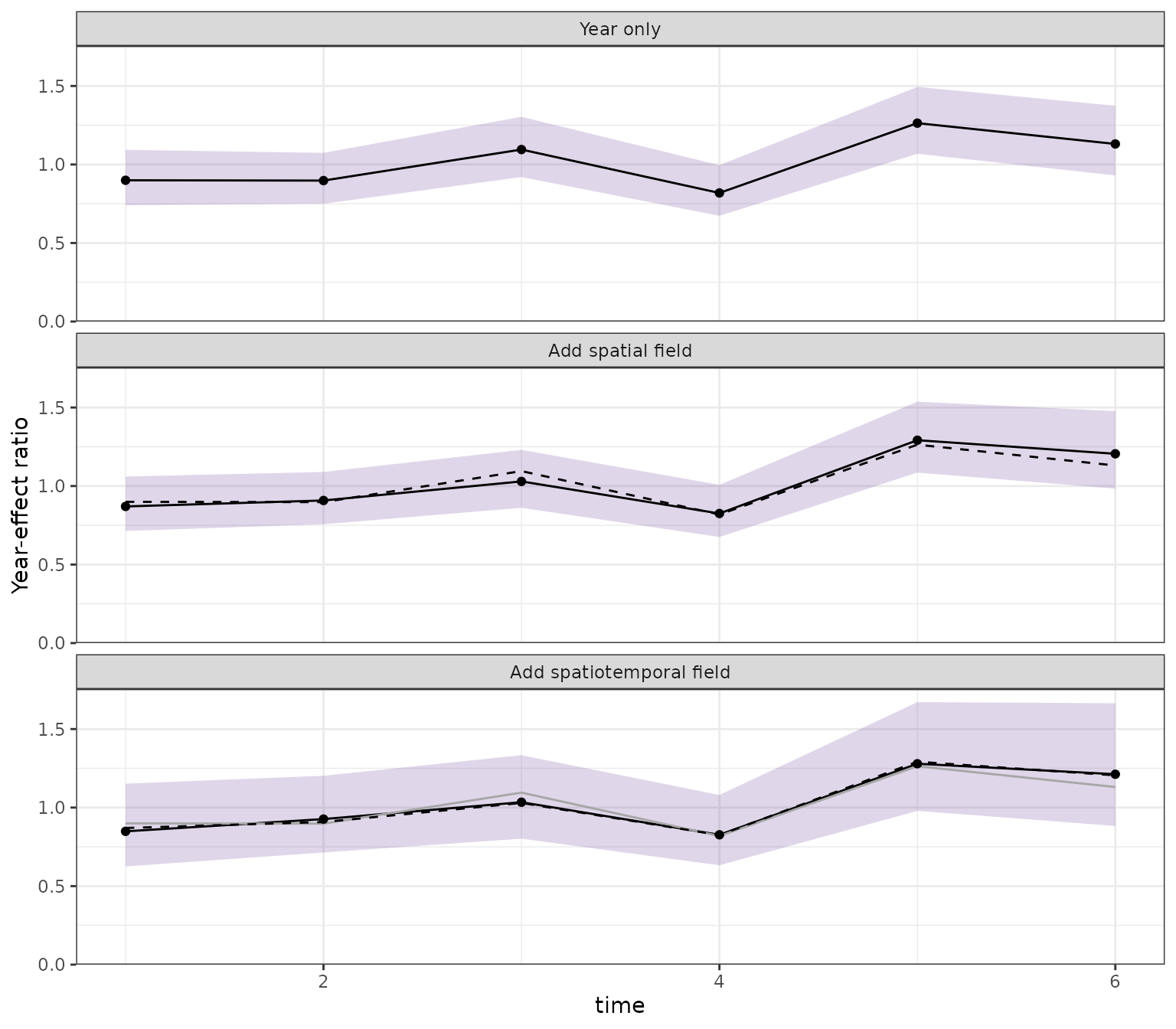

Refitted year-effect steps

The small simulated example already has a fixed factor(time) term, so it can be used directly for an executed refitting sequence. tinyVAST controls its fields through structural-equation strings. Set a field argument to NULL to disable that field. An empty string instead requests a variance field, so it is not a field-off setting. The final step uses the persistent spatial and AR(1) spatiotemporal strings defined above. The observation data and spatial mesh stay the same throughout, and factor(time) is retained in every step.

tiny_steps <- influ_steps(
  tiny_model,
  year = "time",
  component = "conditional",
  refit = TRUE,
  steps = list(
    "Year only" = list(
      formula = ~factor(time),
      space_term = NULL,
      spacetime_term = NULL
    ),
    "Add spatial field" = list(
      formula = ~factor(time),
      space_term = space_term,
      spacetime_term = NULL
    ),
    "Add spatiotemporal field" = list(
      formula = ~factor(time),
      space_term = space_term,
      spacetime_term = spacetime_term
    )
  ),
  ndraws = 100,
  seed = 13
)
tiny_steps
#> <influ_steps>
#>   Estimand: year-effect contrasts (not spatial abundance)
#>   Focus: time
#>   Steps: 3
#>   Refitted: 2
#>  step_id                    label  backend          status
#>        1                Year only tinyVAST        refitted
#>        2        Add spatial field tinyVAST        refitted
#>        3 Add spatiotemporal field tinyVAST reused original

plot_step(tiny_steps)

Relative year-effect contrasts from refitted tinyVAST models with year only, a persistent spatial field, and both spatial and spatiotemporal fields. Shading shows the current model’s 95% interval; these are not spatially integrated abundance indices.

This sequence compares the estimated year effects from models fitted with their own coefficients and field parameters. The final step can reuse the original fit when its specification is unchanged. The comparison is order-dependent: adding the spatiotemporal field before the persistent field would pose a different comparison. The intervals describe each fitted year effect, not the difference between consecutive models. The fitted-field surfaces and component-influence plots above provide complementary information about the model structure; they are separate from this refitted comparison.

plot(tiny_steps) reuses the stored results. For larger spatial models, a named list of previously fitted models can be passed to influ_steps() instead, so the same comparison can be produced without fitting them again. Keep the response, observations, year levels, component, and reference distribution consistent across that list. Set keep_fits = TRUE if the intermediate fitted objects are needed afterwards; otherwise the step result retains compact diagnostic summaries.

Residual conditioning

The following checks reuse the fitted models above. They do not refit models, run MCMC, or change an index. They ask what varies when we simulate a new response: only observation variation, or latent processes as well?

sdmTMB: three different questions

"fitted" holds estimated latent effects fixed. "conditional_draw" holds fixed parameters at their estimates, takes one joint approximate conditional draw of all latent effects, and shares it across every simulation batch. "new_effects" instead generates new processes at fitted distribution parameters, following native re_form = NA (fitted smooths remain fixed). These are diagnostic targets, not competing estimates of the CPUE index.

pcod_residuals <- lapply(
  c("fitted", "conditional_draw", "new_effects"),
  function(scheme) influ_residuals(
    pcod_model, nsim = 250, batch_size = 25, seed = 41,
    conditioning = scheme
  )
)
names(pcod_residuals) <- c("fitted", "conditional_draw", "new_effects")

patchwork::wrap_plots(
  plot(pcod_residuals$fitted, type = "qq") + labs(title = "Fitted effects"),
  plot(pcod_residuals$conditional_draw, type = "qq") +
    labs(title = "One conditional draw"),
  plot(pcod_residuals$new_effects, type = "qq") + labs(title = "New processes"),
  nrow = 1
)

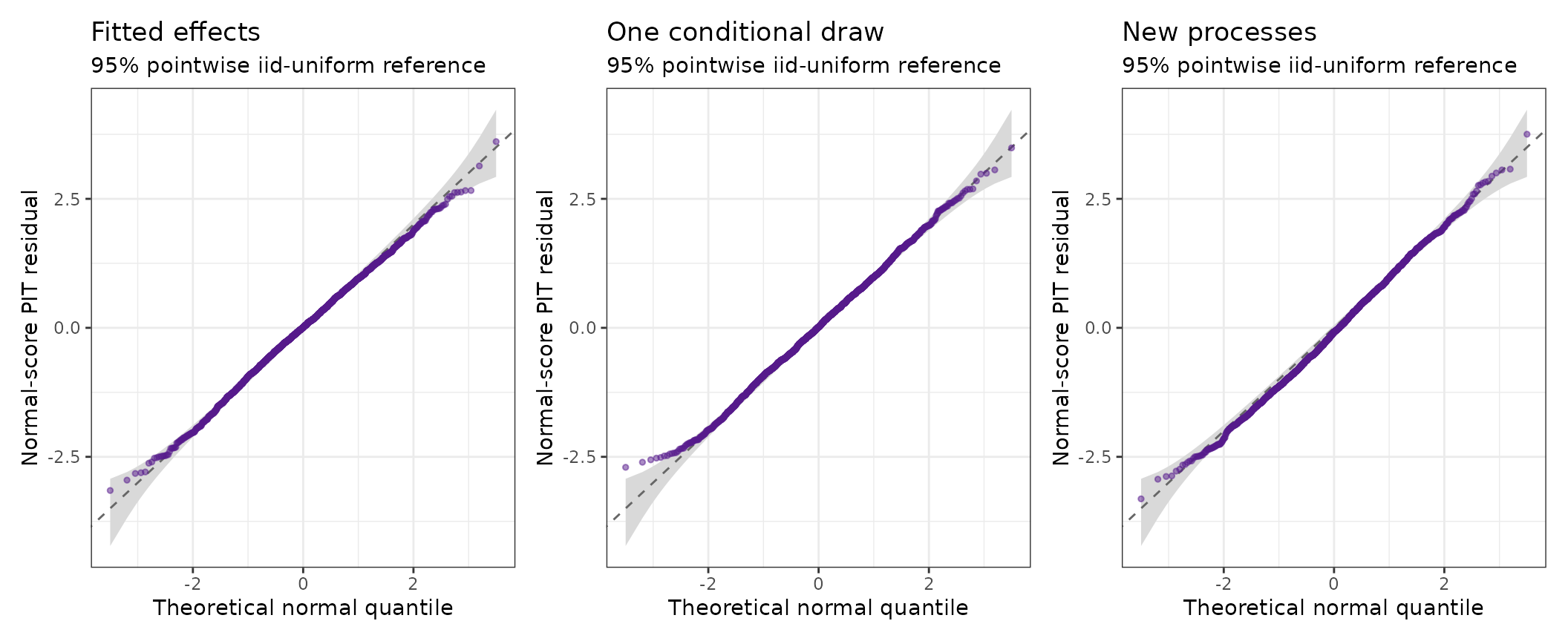

Normal-score PIT Q-Q checks for the same Pacific cod sdmTMB model under three simulation targets: fitted latent effects (left), one shared joint approximate conditional latent draw (centre), and newly simulated processes (right). All use 250 response simulations. These are finite-simulation ranks, not the native analytic quantile residuals. The grey bands are pointwise independent-uniform references, not calibrated tests for this fitted spatial model. Different appearances do not rank these conditioning schemes or identify the best model.

The sdmTMB residual documentation recommends the approximate conditional-draw approach over fitted latent modes for goodness-of-fit checks (Waagepetersen 2006; Thygesen et al. 2017). influ2 uses that latent-draw construction with simulated-response ranks. Its existing default remains "fitted" so this addition does not silently change previous results. Neither sampling nor the qnorm(PIT) transformation makes these fitted-data checks universally calibrated. Inspect sensitivity to a preselected set of seeds; do not keep only the most favourable draw.

plot(pcod_residuals$conditional_draw)

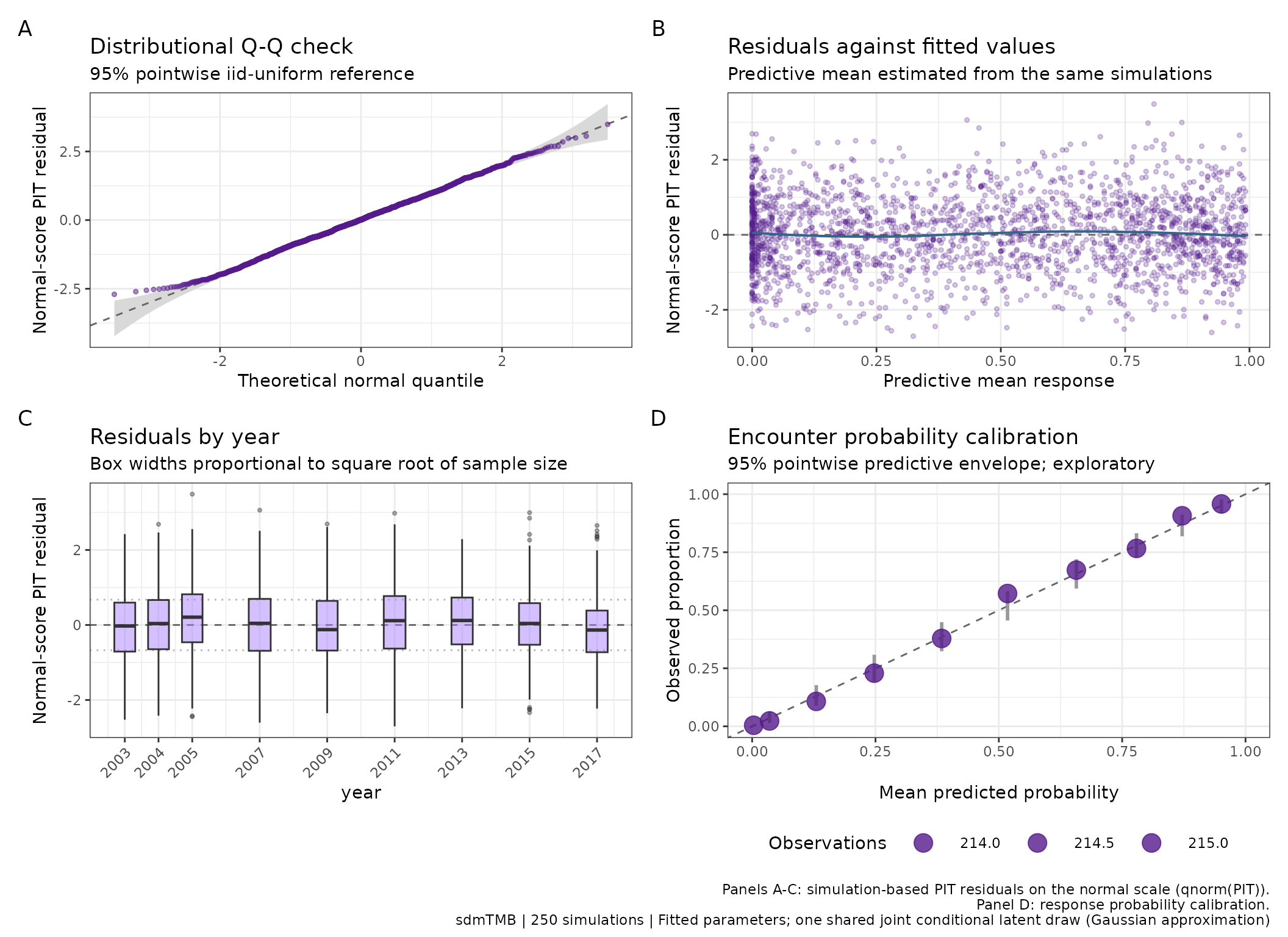

Four-panel Pacific cod residual overview conditional on one shared joint latent-effect draw, with fixed parameters at their fitted values. Panels A-C use normal-score PIT ranks; panel D checks encounter calibration. The binning probabilities use the same sampled latent predictor, and the predictive means come from the same response simulations. Year box widths are proportional to the square root of observation count. Grey references and predictive bars remain exploratory, not confidence intervals around observed proportions or calibrated spatial goodness-of-fit tests.

The complete latent vector is drawn once, not once per location, year, or response batch. The new schemes prepare their response seeds once too, so changing batch_size does not change their observation-level ranks, means, or calibration summaries. The compact response-ECDF grid can still differ because its range uses the first batch. The result retains neither the latent draw nor the full response matrix, although native sparse factorisation and model setup still require working memory.

For a joint delta model, component = "combined" retains the full response; "encounter" checks presence, and supported sdmTMB "positive" checks native component-2 simulations at the original positive-response rows. All three routes honour the requested conditioning. They are not interchangeable views of a positive-only diagnostic.

tinyVAST: match the target, not the argument name

The same two conditional choices work for the simulated spatial and AR(1) spatiotemporal model above:

tiny_fitted_checks <- influ_residuals(
  tiny_model, nsim = 250, seed = 41, conditioning = "fitted"
)
tiny_draw_checks <- influ_residuals(
  tiny_model, nsim = 250, seed = 41, conditioning = "conditional_draw"
)

patchwork::wrap_plots(
  plot(tiny_fitted_checks, type = "qq") + labs(title = "Fitted effects"),
  plot(tiny_draw_checks, type = "qq") + labs(title = "One conditional draw"),
  nrow = 1
)

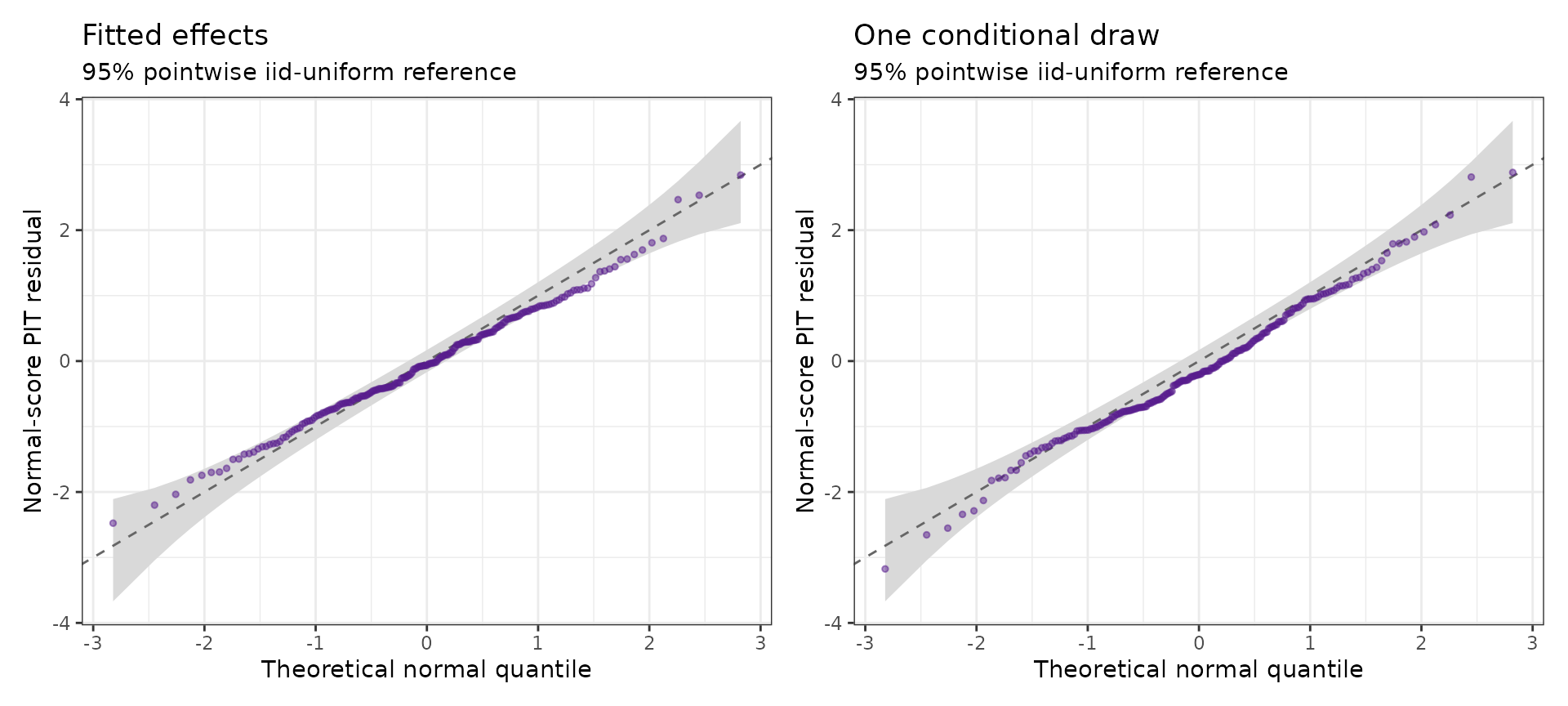

Normal-score PIT Q-Q checks for the same simulated tinyVAST model with persistent spatial and AR(1) spatiotemporal fields. The left plot fixes fitted latent effects; the right holds one joint approximate conditional latent draw across all 250 response simulations. The grey bands are independent-uniform references only. This comparison changes the simulation target, not the model, and does not establish which scheme is best calibrated.

Native tinyVAST simulate(type = "mle-mvn") draws a new latent vector for each replicate. influ2’s "conditional_draw" instead prepares one native TMB draw and reuses it. The common target is therefore intentional, not inferred from a shared native argument name. Unconditional "new_effects" is not offered for tinyVAST here; unsupported choices fail explicitly. See Residual diagnostics for the full backend support table, including glmmTMB and brms.

These plots do not replace maps of residuals, temporal-dependence checks, validation of field covariance assumptions, or out-of-sample assessment.

Response indices and area totals

The influence and step plots above answer different questions from a standardised expected-response index or an area total. Both new calculations work with sdmTMB and tinyVAST, using the same influ_index assessment table as GLMs, GAMs, glmmTMB, and brms. No refitting is required.

sdmTMB: a common domain across years

qcs_grid is the package’s 2 × 2 km prediction grid. We hold its locations and depth covariates constant across years. The model above is binomial, so its standardised response is a mean encounter probability, not catch density. Its area-integrated response is expected encounter-weighted area, not biomass or an estimate of the number of fish.

pcod_response <- cpue_index(pcod_model, year = "year",
  reference_data = qcs_grid, uncertainty = "none", batch_size = 2000,
  units = "encounter probability")
pcod_area <- integrate_index(pcod_model, qcs_grid, area = 4, year = "year",
  area_units = "km^2", response_units = "encounter probability",
  units = "km^2",
  ndraws = 100, batch_size = 2000, draw_batch_size = 25, seed = 71)
knitr::kable(as.data.frame(pcod_area), digits = 3)

Year	Mean	Median	SD	CV	Qlower	Qupper	Method	Distribution	Link
2003	13197.70	NA	637.642	0.048	11873.52	14451.89	integrated	binomial	logit
2004	14240.84	NA	639.456	0.045	12920.83	15311.44	integrated	binomial	logit
2005	14162.44	NA	648.629	0.046	12714.45	15223.09	integrated	binomial	logit
2007	11457.21	NA	597.825	0.052	10368.89	12677.48	integrated	binomial	logit
2009	12522.68	NA	646.502	0.052	11595.07	13840.03	integrated	binomial	logit
2011	11371.78	NA	668.356	0.059	10144.77	12537.46	integrated	binomial	logit
2013	14951.32	NA	665.843	0.045	13555.40	15883.73	integrated	binomial	logit
2015	13845.19	NA	580.896	0.042	12645.27	14793.95	integrated	binomial	logit
2017	11090.37	NA	707.409	0.064	10071.08	12735.22	integrated	binomial	logit

plot_index(pcod_area)

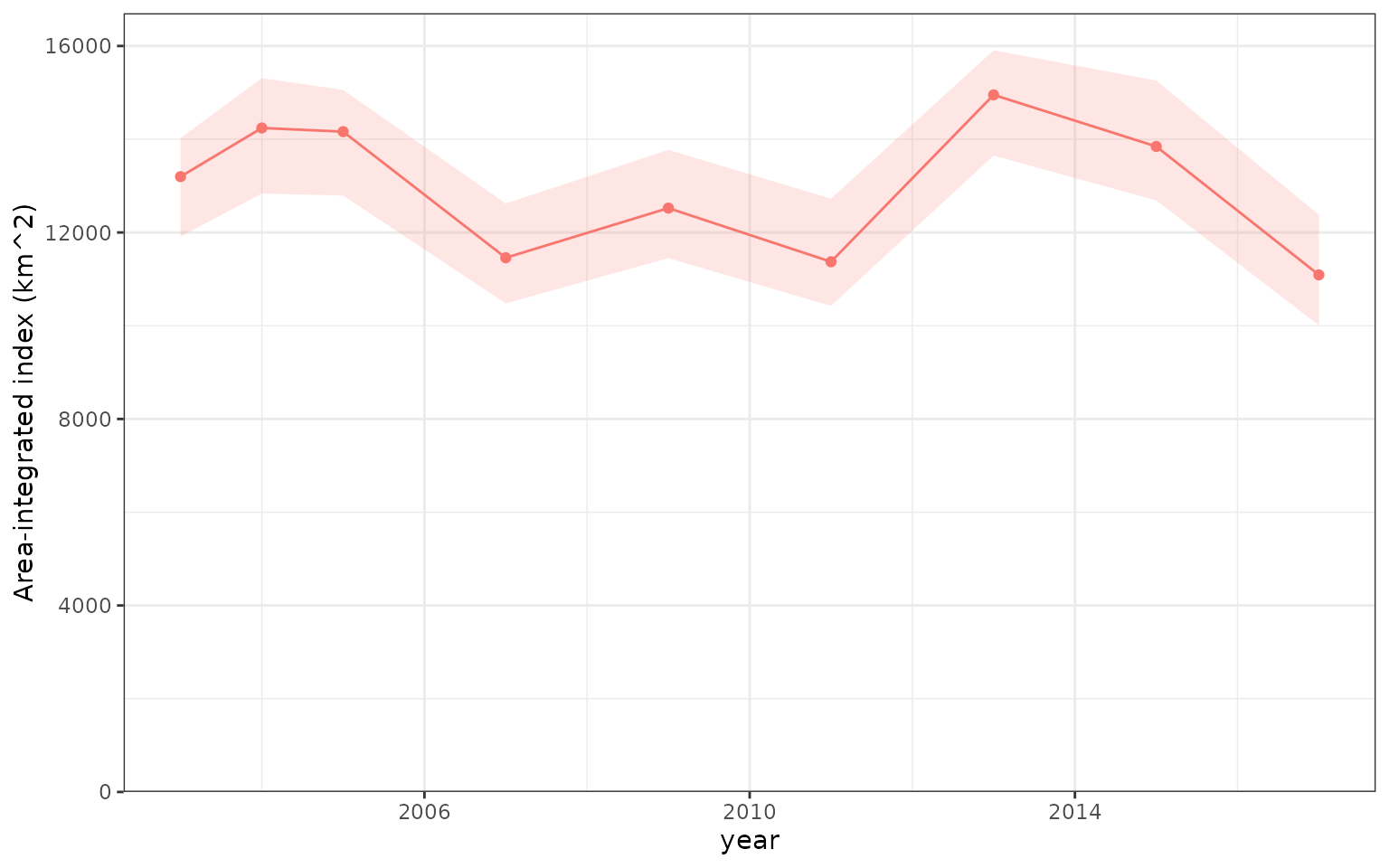

Pacific cod encounter-weighted area over the fixed Queen Charlotte Sound grid. Each cell contributes its 4 km² area times its fitted encounter probability, including persistent and spatiotemporal fields. The pointwise 95% intervals propagate joint Gaussian parameter and field uncertainty; this is not a biomass index or a Laplace bias-corrected estimate.

For a native density model, exactly the same call integrates the combined expected density, including zero and positive components of a delta model. The response and area units must be compatible. sdmTMB group-level IID effects are set to zero, while the fitted spatial fields are included by default. prediction_offset = "log_exposure" can supply an explicit link-scale offset column; the default prediction offset is zero (unit exposure for a log offset).

tinyVAST: integrating the simulated field

For this simulation, interpret each grid location as a 1 km² cell and its Poisson mean as expected fish per km². That is an explicit simulation convention, not a general conversion from raw fishery counts to density. The total covers the same 49 cells each year, irrespective of which cells were sampled.

tiny_reference <- unique(tiny_grid[c("x", "ycoord", "var", "dist")])
tiny_response <- cpue_index(tiny_model, year = "time",
  reference_data = tiny_reference, units = "fish/km^2",
  ndraws = 200, seed = 72)
tiny_total <- integrate_index(tiny_model, tiny_reference, area = 1, year = "time",
  area_units = "km^2", response_units = "fish/km^2", units = "fish",
  ndraws = 200, seed = 72)
knitr::kable(as.data.frame(tiny_total), digits = 3)

Year	Mean	Median	SD	CV	Qlower	Qupper	Method	Distribution	Link
1	109.670	NA	19.135	0.174	85.783	146.663	integrated	poisson	log
2	118.864	NA	17.385	0.146	96.511	161.823	integrated	poisson	log
3	134.286	NA	16.937	0.126	115.763	179.299	integrated	poisson	log
4	107.701	NA	19.737	0.183	88.813	149.476	integrated	poisson	log
5	165.391	NA	30.589	0.185	139.547	251.454	integrated	poisson	log
6	157.522	NA	35.687	0.227	133.311	219.209	integrated	poisson	log

plot_index(tiny_total)

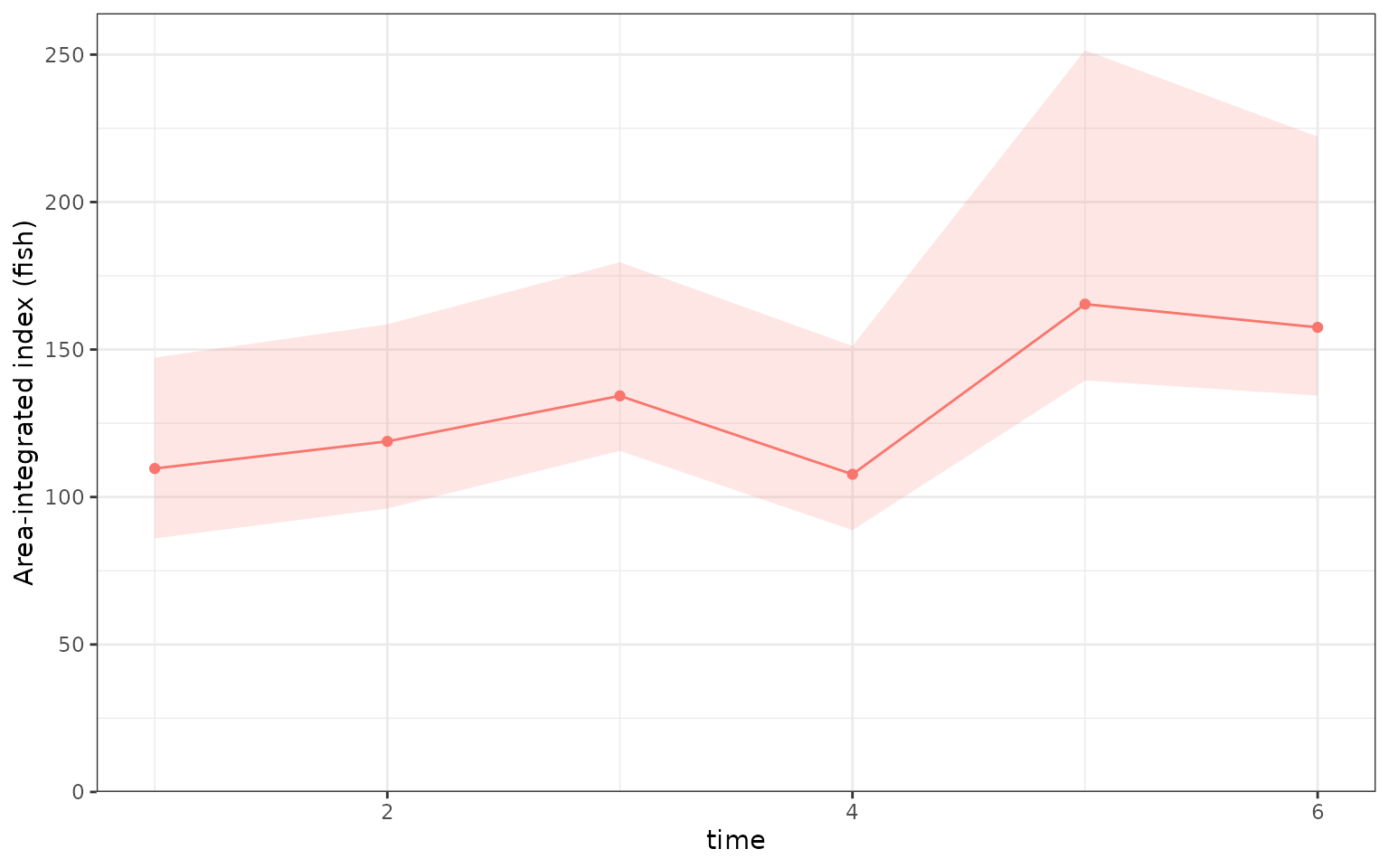

Expected fish over the fixed 49 km² simulated domain, including the fitted tinyVAST persistent and AR(1) spatiotemporal fields. Pointwise 95% intervals use shared joint Gaussian parameter/field draws. These are plug-in expected-response totals, not Laplace bias-corrected totals or predictive intervals for new counts.

spatial_fields = "all" is the default. "spatial" excludes the spatiotemporal field; "spatiotemporal" excludes persistent and spatially varying fields; "none" excludes both kinds. Those alternatives change the prediction target without refitting, and are not the refitted step sequence above. Other fitted time effects and smooths remain present.

Spatial uncertainty uses a joint Gaussian approximation to the fitted parameters and fields. Every cell and year uses the same parameter-draw identities. Predictions are reduced directly to annual summaries in blocks; retain = "draws" retains only a draw-by-year matrix. Native model calculations can allocate additional memory. Increase ndraws and check numerical stability for final inference; the small simulation counts here keep documentation builds manageable. Native sdmTMB and tinyVAST bias-corrected index routines answer a different numerical approximation and should not be expected to match these uncorrected point estimates.

See CPUE indices for area integration with a GAM spatial smooth or an ordinary GLM, unit and catchability safeguards, and seasonal averaging weights. The same fixed-domain interface applies even when the fitted model has no spatial terms. Multivariate tinyVAST influence diagnostics below remain supported, but their response integration is explicitly rejected until separate response/unit targets exist.

Sampling support and index-domain counterfactuals

index_domain() separates three questions: how much reference weight is sampled, which native terms contribute on the link scale, and how the annual index changes under an explicitly defined prediction counterfactual. It never refits the model. These contrasts are therefore different from the refitted influ_steps() comparisons above.

Prefer an explicit sampling rule: shared cell IDs, a coordinate/distance rule, or a reference-cell-by-year logical matrix. If sampled is omitted, the default uses half the reference-grid spacing and issues a warning. That convenience rule is not an inferred survey footprint: a mesh boundary or the presence of prediction covariates is not evidence of sampling. Here, 5 km is a deliberately chosen support radius around Pacific cod observations, not an inferred survey footprint. The units match the projected X and Y coordinates; a different scientifically justified radius answers a different question.

sdmTMB: a small, explicit reference profile

These calculations reuse pcod_model; there is no additional fit. To keep the worked example fast, select 40 grid locations spread across the ordered survey grid, and use 60 shared joint Gaussian draws with seed 73. Every selected cell has equal reference weight. This deliberately small reference profile is neither the full Queen Charlotte Sound grid nor an area/biomass estimate. The model response remains encounter probability.

pcod_domain_reference <- qcs_grid[order(qcs_grid$X, qcs_grid$Y), ]
profile_rows <- unique(round(seq(
  1, nrow(pcod_domain_reference), length.out = 40
)))
pcod_domain_reference <- pcod_domain_reference[profile_rows, ]
pcod_domain <- index_domain(
  pcod_model, reference_data = pcod_domain_reference, year = "year",
  sampled = list(coords = c("X", "Y"), distance = 5),
  sampled_definition = c("cell_time", "cell_ever"),
  omission_definition = "cell_time",
  min_obs = 1, min_years = 1,
  omit = "spatial", where = "unsampled", units = "encounter probability",
  ndraws = 60, seed = 73, batch_size = 500, draw_batch_size = 20,
  retain_cells = sort(unique(pcod$year))[1]
)
knitr::kable(summary(pcod_domain, what = "coverage"), digits = 3)

Year	class	cells	weight	share
2003	sampled	19	19	0.475
2003	previously_sampled	19	19	0.475
2003	never_sampled	2	2	0.050
2004	sampled	20	20	0.500
2004	previously_sampled	18	18	0.450
2004	never_sampled	2	2	0.050
2005	sampled	16	16	0.400
2005	previously_sampled	22	22	0.550
2005	never_sampled	2	2	0.050
2007	sampled	20	20	0.500
2007	previously_sampled	18	18	0.450
2007	never_sampled	2	2	0.050
2009	sampled	20	20	0.500
2009	previously_sampled	18	18	0.450
2009	never_sampled	2	2	0.050
2011	sampled	21	21	0.525
2011	previously_sampled	17	17	0.425
2011	never_sampled	2	2	0.050
2013	sampled	18	18	0.450
2013	previously_sampled	20	20	0.500
2013	never_sampled	2	2	0.050
2015	sampled	15	15	0.375
2015	previously_sampled	23	23	0.575
2015	never_sampled	2	2	0.050
2017	sampled	20	20	0.500
2017	previously_sampled	18	18	0.450
2017	never_sampled	2	2	0.050

At this radius, some profile cells were never observed and no profile cell was sampled in every survey year. We therefore request cell_time and cell_ever comparisons, rather than an empty cell_always series. Requesting that empty core returns undefined means and a warning; the default plot also warns when an entirely unavailable series is excluded from display normalisation. It does not replace an empty mean by zero or suppress other diagnostics.

plot(pcod_domain)

Pacific cod encounter probabilities over a fixed 40-cell demonstration reference profile. The upper panel compares the full-profile mean with sampled-only means, using one shared full-index display divisor; pointwise 95% intervals use 60 paired joint Gaussian draws. The lower panel shows the declared 5 km observation-support coverage, not sampling uncertainty. The annually sampled cell_time series is a variable-domain diagnostic, not an alternative fixed-domain abundance index.

patchwork::wrap_plots(
  plot(pcod_domain, type = "partition"),
  plot(pcod_domain, type = "share"),
  ncol = 1
)

Pacific cod response contributions and dependence on unsampled reference cells. The stacked contributions in the upper panel sum to the black full-profile encounter-probability mean. The lower panel combines previously sampled and never-sampled cells as a share of that full mean, with a pointwise paired-draw interval. Previously sampled means sampled in another survey year, not necessarily an earlier year; unsampled does not mean uninformed by the spatial model.

plot(pcod_domain, type = "omission")

Pacific cod prediction counterfactual setting the persistent spatial field to zero only in cells without an observation within 5 km that year. The fitted parameters, sampled-cell predictions, and spatiotemporal field are retained. The lower panel compares counterfactual and full indices using the same 60 joint draws. This is sensitivity to a prediction intervention, not a refitted model or evidence that the unsampled predictions are incorrect.

cell_time restricts predictions to that year’s sampled cells and can change the target population from year to year. cell_ever retains cells sampled in at least min_years years (one year by default); a proportion strictly between zero and one is converted to a year count by rounding up. cell_always requires sampling in every requested year, independently of min_years. A fixed domain can still be small or unrepresentative. Empty restricted means are undefined, not zero. Coverage is a deterministic description of the declared rule, not a confidence interval or proof of representative sampling. All three sampled-only indices are calculated by default; omission uses the single omission_definition, which defaults to "cell_time". Choosing a different omission definition does not change the coverage reporting classes.

For weighted means, the sampled-only plot divides all series by the same full-index geometric mean over common positive years. For area totals, each series is instead divided by its own geometric mean over that common period: the comparison then shows trend shapes rather than different domain areas. Stored values are unchanged. The cell_time series is explicitly labelled as a variable-domain diagnostic. Coverage and response partitions are stacked by class; response partitions sum to the overlaid full index. The share plot combines previously sampled and never sampled cells, with intervals from paired joint draws. Omission plots add a lower omitted/full ratio panel. Link contributions instead add separately within each native component, not on the response scale. Their decomposition quantiles describe spatial variation across weighted reference cells, not confidence intervals.

omit = "spatial" sets both the persistent spatial field and all spatially varying coefficient (SVC) fields to zero, matching spatial_fields = "spatiotemporal" in cpue_index(). Use "svc" to remove only SVC fields, or "spatiotemporal" to remove only the time-varying field. Nothing is re-estimated. Year omission substitutes the first year’s contribution at the same reference location; separate year interactions and time-varying terms remain unless selected. By default a covariate contribution is replaced by its reference-weighted mean over that year’s sampled cells, separately for each joint draw and component, regardless of omission_definition. This is not prediction at a mean raw covariate or a mean response; choose "zero" only for deliberately centred terms, or supply an explicit fixed-value rule. Pacific cod predictions above remain encounter probabilities, not biomass.

Omission contrasts depend on the fitted term decomposition and its centring and identifiability constraints. Correlated terms can share signal, so these contrasts are not causal effects or unique allocations of importance or variance. For integrated totals, reference averaging weights are multiplied by cell areas without internal normalisation. Seasonal-mean weights should sum to one within each spatial cell; otherwise the resulting effective weighted area need not equal unique geographic area.

tinyVAST: changing observation support on the simulated grid

The tinyVAST simulation has exact shared cell coordinates. A zero-distance rule therefore identifies observations at the same cell without rounding or nearest-neighbour assignment. The 49 cells carry equal reference weights, as in the previous expected-density example; no area multiplication is requested here. Every cell was observed in at least one of the six simulated years, so the never-sampled contribution is genuinely zero in this example, while same-year coverage changes. This calculation reuses tiny_model, with only 60 joint draws and seed 74, and retains first-year cell contributions for a map.

tiny_domain_reference <- unique(tiny_grid[c("x", "ycoord", "var", "dist")])
tiny_domain <- index_domain(
  tiny_model, reference_data = tiny_domain_reference, year = "time",
  sampled = list(coords = c("x", "ycoord"), distance = 0),
  omission_definition = "cell_time",
  min_years = 1,
  omit = "spatiotemporal", where = "unsampled", units = "fish/km^2",
  ndraws = 60, seed = 74, batch_size = 500, draw_batch_size = 20,
  retain_cells = 1
)
knitr::kable(summary(tiny_domain, what = "trend"), digits = 3)

series	window	slope	slope_lower	slope_upper	slope_difference	difference_lower	difference_upper	correlation	correlation_lower	correlation_upper
full	all	0.074	0.016	0.134	0.000	0.000	0.000	1.000	1.000	1.000
cell_time	all	0.054	0.007	0.111	-0.019	-0.043	0.011	0.963	0.788	0.992
cell_ever	all	0.074	0.016	0.134	0.000	0.000	0.000	1.000	1.000	1.000
cell_always	all	0.083	0.024	0.161	0.009	-0.032	0.068	0.982	0.657	0.993
unsampled_only	all	0.116	-0.019	0.199	0.042	-0.043	0.090	0.877	0.301	0.972
spatiotemporal:unsampled:cell_time	all	0.065	0.015	0.131	-0.009	-0.045	0.046	0.993	0.746	0.998

plot(tiny_domain)

Full and sampled-only expected-density means from the same tinyVAST fit over the 49-cell simulated grid, with declared observation coverage below. The pointwise intervals use 60 shared joint Gaussian draws, not repeated fits. The fixed ever-sampled domain equals the full grid, whereas the same-year domain changes and the always-sampled core contains fewer cells. This display preserves level differences by using the same full-index divisor for all means.

The next display uses the stored decomposition table rather than predicting again. Its ribbons describe the distribution of native link contributions across cells, not parameter-uncertainty intervals. The fields are additive on the link scale; exponentiating each field and adding those numbers would not reconstruct the response mean.

tiny_field_terms <- subset(
  summary(tiny_domain, what = "decomposition"),
  class == "all" & term %in% c("spatial", "spatiotemporal")
)
ggplot(tiny_field_terms, aes(as.numeric(Year), mean)) +
  geom_ribbon(aes(ymin = Q10, ymax = Q90), fill = "#8E7CC3", alpha = 0.25) +
  geom_line(colour = "#674EA7") +
  geom_hline(yintercept = 0, linetype = 2, colour = "grey50") +
  facet_wrap(~term) +
  labs(x = "Year", y = "Link-scale contribution")

Native tinyVAST persistent and spatiotemporal link contributions across all reference cells. Lines show reference-weighted means and ribbons show spatial Q10-Q90 ranges from the recorded weighted-histogram approximation. These ranges describe spatial heterogeneity, not uncertainty in fitted coefficients or a confidence interval for an index.

plot(tiny_domain, type = "map", coords = c("x", "ycoord"),
     years = 1, terms = "spatiotemporal")

First-year tinyVAST spatiotemporal link contribution at each of the 49 reference cells. The displayed field is retained from the same fitted model and is not independently estimated from sampled-only data. Unsampled cells can still borrow information through the fitted covariance structure.

For an index-only counterfactual, the same omission rules are available through cpue_index(). This returns an ordinary influ_index, without the coverage, partition, and decomposition report:

pcod_without_unsampled_spatial <- cpue_index(
  pcod_model, reference_data = pcod_domain_reference, year = "year",
  omit_terms = "spatial", omit_where = "unsampled",
  sampled = list(coords = c("X", "Y"), distance = 5),
  sampled_definition = "cell_time", ndraws = 60, seed = 73
)
knitr::kable(index_table(pcod_without_unsampled_spatial), digits = 3)

Year	Mean	SD	CV	Q0.025	Q0.975	Method	Distribution	Link
2003	0.511	0.047	0.092	0.407	0.581	standardised	binomial	logit
2004	0.536	0.055	0.103	0.410	0.623	standardised	binomial	logit
2005	0.585	0.053	0.091	0.483	0.664	standardised	binomial	logit
2007	0.447	0.052	0.117	0.362	0.544	standardised	binomial	logit
2009	0.521	0.054	0.103	0.406	0.598	standardised	binomial	logit
2011	0.501	0.058	0.116	0.377	0.579	standardised	binomial	logit
2013	0.547	0.053	0.098	0.419	0.616	standardised	binomial	logit
2015	0.575	0.056	0.098	0.446	0.645	standardised	binomial	logit
2017	0.421	0.060	0.143	0.300	0.513	standardised	binomial	logit

stopifnot(isTRUE(all.equal(
  pcod_without_unsampled_spatial$table$Mean,
  pcod_domain$omission[[1]]$table$Mean
)))

Area totals can be requested with area, area_units, and response_units, using the same unit conventions as integrate_index(). A sampled-domain total is over less area than the full total, so a level difference is not automatically a model failure. Trend and omission summaries use paired joint draws from one fit, not independent uncertainty from separate models.

GAM: declared spatial and spatiotemporal smooths

The same workflow is available for single-predictor mgcv::gam() models. A smooth is not automatically labelled a field: supply its native smooth label in spatial_terms or spatiotemporal_terms, or use that label directly in omit. This makes the scientific grouping explicit, including for tensor products, by-factor smooths, and random-effect smooths.

This example simulates CPUE on a 36-cell reference lattice over five years. Sampling moves eastward, leaving a permanently unobserved northern strip and holes within the sampled footprint. The Gamma model is fitted to positive CPUE observations, not to a density calibrated to biomass. Its fitted smooths borrow information into unobserved cells; no diagnostic can establish the truth of that extrapolation from these observations alone.

set.seed(75)
gam_reference <- expand.grid(X = seq(0, 1, length.out = 6),
                             Y = seq(0, 1, length.out = 6))
gam_reference$cell <- seq_len(nrow(gam_reference))
# Depth is not a deterministic copy of the spatial coordinates: otherwise
# cancelling one of two confounded smooths is a poor demonstration target.
gam_reference$depth <- runif(nrow(gam_reference), 20, 80)
gam_population <- merge(gam_reference,
  expand.grid(year = 2011:2015, replicate = 1:3))
time_fraction <- (gam_population$year - 2011) / 4
eta <- 0.2 + 0.15 * (gam_population$year - 2011) -
  0.015 * gam_population$depth + sin(pi * gam_population$X) +
  0.7 * (2 * time_fraction - 1) * (gam_population$X - 0.5)
gam_population$cpue <- rgamma(nrow(gam_population),
  shape = 5, scale = exp(eta) / 5)
sample_probability <- 0.25 + 0.65 *
  (1 - abs(gam_population$X - time_fraction))
observed <- gam_population$Y < 1 &
  runif(nrow(gam_population)) < sample_probability
gam_observations <- gam_population[observed, ]

gam_model <- mgcv::gam(
  cpue ~ factor(year) + s(depth, k = 5) + s(X, Y, k = 10) +
    ti(X, Y, year, d = c(2, 1), k = c(8, 3)),
  family = Gamma(link = "log"), data = gam_observations, method = "REML"
)
vapply(gam_model$smooth, function(x) x$label, character(1))
#> [1] "s(depth)"     "s(X,Y)"       "ti(X,Y,year)"

data supplies the original cell identifiers, which are not formula predictors. They are checked against the retained fitted rows and values; the external fitting call is never reevaluated. For this cell-ID rule, coverage counts only observed responses with positive fitted likelihood weights and, where applicable, positive trial counts. Rows with missing responses or zero likelihood weights do not establish sampling support. A supplied logical support matrix instead declares support directly and must be justified by the analyst.

gam_domain <- index_domain(
  gam_model, reference_data = gam_reference, year = "year",
  data = gam_observations, sampled = "cell",
  sampled_definition = c("cell_time", "cell_ever"),
  spatial_terms = "s(X,Y)",
  spatiotemporal_terms = "ti(X,Y,year)",
  omit = c("spatial", "spatiotemporal"), where = "unsampled",
  ndraws = 60, seed = 76, batch_size = 180, draw_batch_size = 20,
  retain_cells = 2015, units = "CPUE"
)
knitr::kable(index_table(gam_domain$baseline), digits = 3)

Year	Mean	SD	CV	Q0.025	Q0.975	Method	Distribution	Link
2011	1.070	0.077	0.072	0.941	1.232	standardised	Gamma	log
2012	1.186	0.054	0.045	1.081	1.276	standardised	Gamma	log
2013	1.337	0.076	0.057	1.221	1.484	standardised	Gamma	log
2014	1.649	0.093	0.056	1.462	1.796	standardised	Gamma	log
2015	1.885	0.140	0.074	1.689	2.193	standardised	Gamma	log

# The fitted full-domain estimate agrees with native response prediction.
native_first_year <- mean(predict(gam_model,
  newdata = transform(gam_reference, year = 2011), type = "response"))
stopifnot(isTRUE(all.equal(native_first_year,
  gam_domain$baseline$table$Mean[1], check.attributes = FALSE)))

Uncertainty uses shared joint Gaussian coefficient draws with native GAM covariance, including the smoothing-parameter correction when available. Likelihood nuisance parameters stay fitted. This is not MCMC, and these simulation intervals need not equal the delta-method intervals returned by an ordinary GAM cpue_index() call. The plug-in full-domain point estimate is the same. Predictions are reduced in blocks; the saved result contains annual draws and summaries, not a cell-by-draw prediction array or the model.

plot(gam_domain)

Simulated Gamma CPUE over the fixed 36-cell reference lattice, compared with annually sampled and ever-sampled subsets. The lower panel reports the declared cell-ID coverage. All lines use the same full-index display divisor, and pointwise 95% intervals use 60 paired Gaussian GAM coefficient draws. The annual subset changes the reference population; none of these CPUE means is biomass.

plot(gam_domain, type = "omission")

Separate GAM prediction interventions: zero the declared persistent spatial smooth, or zero the declared spatiotemporal tensor smooth, only in unsampled cell-years. Each intervention is compared with the unchanged full prediction using the same joint coefficient draws. Sampled-cell predictions and all other terms remain fitted; these are not reduced-model refits or a test that unsampled predictions are wrong.

The grouped labels spatial and spatiotemporal are available to the same decomposition and retained-cell map methods as native spatial models. Smooths not grouped explicitly, such as s(depth), retain their native labels. For an index alone, cpue_index(..., omit_terms = "spatial", data = gam_observations, sampled = "cell", spatial_terms = "s(X,Y)") uses this same paired calculation, without retaining the domain report. Multi-predictor GAM families and transformed responses are rejected rather than assigned an implicit response-scale interpretation.

Multivariate tinyVAST responses

tinyVAST can fit multiple responses, including responses with different families. influ2 keeps the common schema and prefixes each component with its response name. This small non-spatial example isolates that interface; the same response labels are used when spatial and spatiotemporal terms are added.

multivariate_data <- rbind(
  transform(
    tiny_data,
    response = count,
    var = "count",
    dist = "poisson"
  ),
  transform(
    tiny_data,
    response = as.numeric(count > 0),
    var = "encounter",
    dist = "binomial"
  )
)

multivariate_model <- tinyVAST::tinyVAST(
  response ~ factor(time),
  data = multivariate_data,
  family = list(
    poisson = poisson(),
    binomial = binomial()
  ),
  spatial_domain = NULL
)
multivariate_diagnostic <- influ(
  multivariate_model,
  focus = "time"
)
unique(multivariate_diagnostic$influence[c("term", "component")])
#>            term             component
#> 1  factor(time)     count:conditional
#> 13 factor(time) encounter:conditional

Joint field uncertainty

The fixed-effect bands use each model’s joint maximum-likelihood covariance. Spatial and spatiotemporal intervals use sparse joint-precision simulation. The implementation processes parameter draws in small batches and retains only focus-by-term diagnostic draws, never an observations-by-draws latent field array. For delta models, occurrence and positive fields are taken from the same joint draw before unconditional-mean influence is calculated. This preserves cross-component dependence while keeping memory use bounded.

uncertainty = "none" remains available as a fast fitted-mode preview. An explicit reference_data grid, optionally with reference_weights, can be used to hold the spatial and covariate standardisation distribution fixed across model comparisons.

The same reference is used to centre the fitted-effect panel in a CDI plot. For a binomial logit component, as in the Pacific cod example, centred effects remain in log-odds, with zero as the reference. A log-link component, as in the simulated count example, uses relative effects about one on a logarithmic axis. Select the relevant response and component when comparing different fields or mixed-family responses. The fitted field maps above remain on their original link scale; they describe the underlying field, whereas the influence panels describe its contribution relative to the chosen reference distribution.

References

Anderson, Sean C., Eric J. Ward, Phil A. English, Lewis A. K. Barnett, and James T. Thorson. 2025. “sdmTMB: An r Package for Fast, Flexible, and User-Friendly Generalized Linear Mixed Effects Models with Spatial and Spatiotemporal Random Fields.” Journal of Statistical Software 115 (2): 1–46. https://doi.org/10.18637/jss.v115.i02.

Thorson, James T., Sean C. Anderson, Pamela Goddard, and Christopher N. Rooper. 2025. “tinyVAST: R Package with an Expressive Interface to Specify Lagged and Simultaneous Effects in Multivariate Spatio-Temporal Models.” Global Ecology and Biogeography 34 (4): e70035. https://doi.org/10.1111/geb.70035.

Thygesen, Uffe Høgsbro, Christoffer Moesgaard Albertsen, Casper Willestofte Berg, Kasper Kristensen, and Anders Nielsen. 2017. “Validation of Ecological State Space Models Using the Laplace Approximation.” Environmental and Ecological Statistics 24 (2): 317–39. https://doi.org/10.1007/s10651-017-0372-4.

Waagepetersen, Rasmus. 2006. “A Simulation-Based Goodness-of-Fit Test for Random Effects in Generalized Linear Mixed Models.” Scandinavian Journal of Statistics 33 (4): 721–31. https://doi.org/10.1111/j.1467-9469.2006.00504.x.
